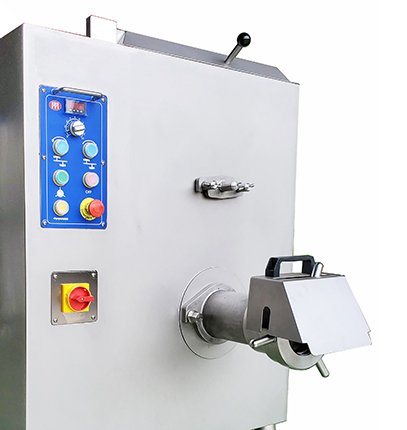

HTG-114M / HTG-130M (Stainless steel mix mincer) Meat Grinding & Mixing Machine HTG-114M / HTG-130M
Made of stainless steel, no rust oxidation with the sanitary standard.

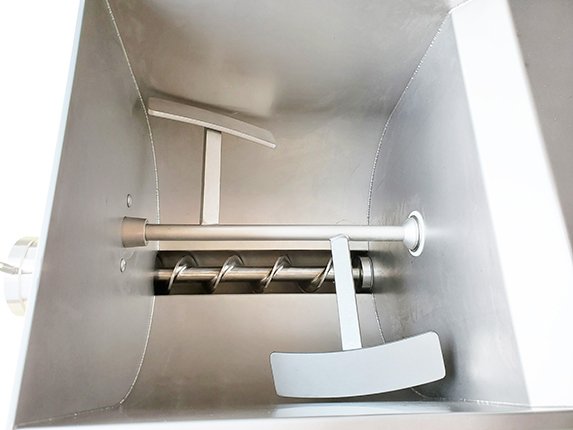

Grinding barrel in spiral shape to make the ground object in separated piece, not stuck together.
Double function of grinding and mixing.
2 type of mixing paddle ( alternative ), can be worked clockwise or anticlockwise.
Strong gear box and big horse power.
The cap of machine devised with safety switch to protect the operator.
Grinding speed can be adjusted variable for grind different product.
Assembly two blades and three nets ( Unger system HTG-114M-UN and HTG-130M-UN ) can be placed at the same time to come out the finest result, timesaving and energy saving.
Made of stainless steel, no rust oxidation with the sanitary standard.
Grinding barrel in spiral shape to make the ground object in separated piece, not stuck together.
Double function of grinding and mixing.
2 type of mixing paddle ( alternative ), can be worked clockwise or anticlockwise.
Strong gear box and big horse power.
The cap of machine devised with safety switch to protect the operator.
Grinding speed can be adjusted variable for grind different product.
Assembly two blades and three nets ( Unger system HTG-114M-UN and HTG-130M-UN ) can be placed at the same time to come out the finest result, timesaving and energy saving.
Made of stainless steel, no rust oxidation with the sanitary standard.
Grinding barrel in spiral shape to make the ground object in separated piece, not stuck together.
Double function of grinding and mixing.
2 type of mixing paddle ( alternative ), can be worked clockwise or anticlockwise.
Strong gear box and big horse power.
The cap of machine devised with safety switch to protect the operator.
Grinding speed can be adjusted variable for grind different product.
Assembly two blades and three nets ( Unger system HTG-114M-UN and HTG-130M-UN ) can be placed at the same time to come out the finest result, timesaving and energy saving.
Model No. HTG-114M-UN HTG-130M-UN HTG-130M-EN
Motor Grinding 7.5 HP 3 phase 10 HP 3 phase 10HP 3 phase
Motor Mixing 2 HP 2 HP 2 HP
Capacity 800 kgs / hr 1000 kgs / hr 800 kgs / hr
Plate Dia. 114 mm Unger System 130 mm Unger System 130 mm Enterprise System
Machine size ( W x D x H ) 900 x 1210 x 1320 mm 900 x 1230 x 1320 mm 900 x 1160 x 1320 mm
Machine weight 460 kgs 485 kgs 480 kgs
