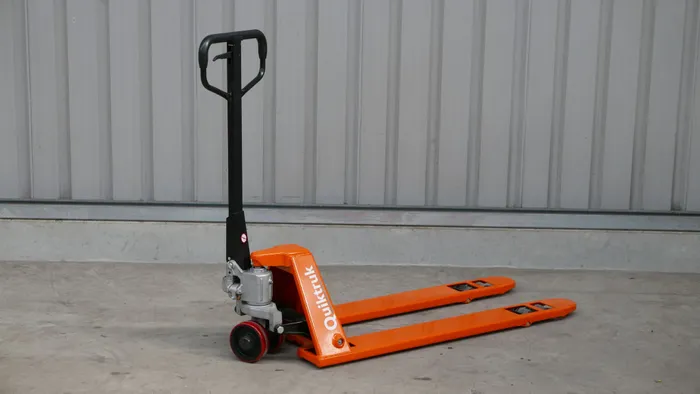

Quiktruk M25 Pallet truck
Price Excludes GST*
Quiktruk M25 is a tough general-use pallet truck from Simpro, with 2500kg capacity and a smart dual-mode pump for faster handling of light loads. The lowered fork height of 85mm allows the M25 to handle CHEP and EURO pallets from two directions, as well as bulk bins and IBCs.
Weighing just 65kg, the M25 is easy to move and very manoeuvrable, with a 1286mm turning radius. The truck features large polyurethane-tyred rear wheels and tandem rollers mounted on pivoting bogies for smooth, jam-free travel. The hydraulic pump is fully sealed and maintenance-free to 60,000 cycles.
Like all Simpro pallet trucks, the M25 complies with a range of international standards and is manufactured in an ISO9000-certified plant. It is backed by a one-year warranty.
– 2500kg capacity
– Dual-mode pump (faster lifting up to 300kg)
– CHEP 2-way compatible
– Fork dimensions 540/685x1150x85mm
– 12-month back-to-base warranty
Price Excludes GST*
Quiktruk M25 is a tough general-use pallet truck from Simpro, with 2500kg capacity and a smart dual-mode pump for faster handling of light loads. The lowered fork height of 85mm allows the M25 to handle CHEP and EURO pallets from two directions, as well as bulk bins and IBCs.
Weighing just 65kg, the M25 is easy to move and very manoeuvrable, with a 1286mm turning radius. The truck features large polyurethane-tyred rear wheels and tandem rollers mounted on pivoting bogies for smooth, jam-free travel. The hydraulic pump is fully sealed and maintenance-free to 60,000 cycles.
Like all Simpro pallet trucks, the M25 complies with a range of international standards and is manufactured in an ISO9000-certified plant. It is backed by a one-year warranty.
– 2500kg capacity
– Dual-mode pump (faster lifting up to 300kg)
– CHEP 2-way compatible
– Fork dimensions 540/685x1150x85mm
– 12-month back-to-base warranty
Price Excludes GST*
Quiktruk M25 is a tough general-use pallet truck from Simpro, with 2500kg capacity and a smart dual-mode pump for faster handling of light loads. The lowered fork height of 85mm allows the M25 to handle CHEP and EURO pallets from two directions, as well as bulk bins and IBCs.
Weighing just 65kg, the M25 is easy to move and very manoeuvrable, with a 1286mm turning radius. The truck features large polyurethane-tyred rear wheels and tandem rollers mounted on pivoting bogies for smooth, jam-free travel. The hydraulic pump is fully sealed and maintenance-free to 60,000 cycles.
Like all Simpro pallet trucks, the M25 complies with a range of international standards and is manufactured in an ISO9000-certified plant. It is backed by a one-year warranty.
– 2500kg capacity
– Dual-mode pump (faster lifting up to 300kg)
– CHEP 2-way compatible
– Fork dimensions 540/685x1150x85mm
– 12-month back-to-base warranty
Quiktruk M25 Specifications
Model M25
Rated load capacity (“Q”) 2500kg
Fork height, lowered (“h13”) 85mm
No. wheels, body 2
Wheel dimensions, body ⌀200mm x 50mm
No. wheels, forks 4
Wheel dimensions, forks ⌀80mm x 70mm
Maximum lift height (“h3”) 200mm
Lift height per stroke 40mm (load < 300kg)
16mm (load > 300kg)
Tiller height, min / max (“h14”) 490mm / 1224mm
Overall length (“l1”) 1533mm
Length to face of forks (“l2”) 383mm
Fork length (“l”) 1150mm
Fork width (“e”) 160mm
Fork depth (“s”) 45mm
Width overall forks (“b5”) 550mm
Ground clearance, centre of wheelbase (“m2”) 40mm
Aisle width for pallets 1000×1200 crossways (“Ast”) 1733mm
Aisle width for pallets 800×1200 lengthways (“Ast”) 1783mm
Turning radius (“Wa”) 1266mm
Materials Mild steel with powdercoated finish
Service weight 70kg
